Regular price $439.00 $0.00

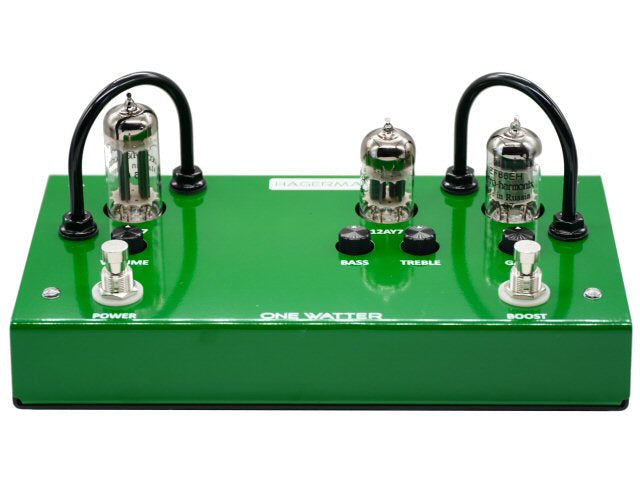

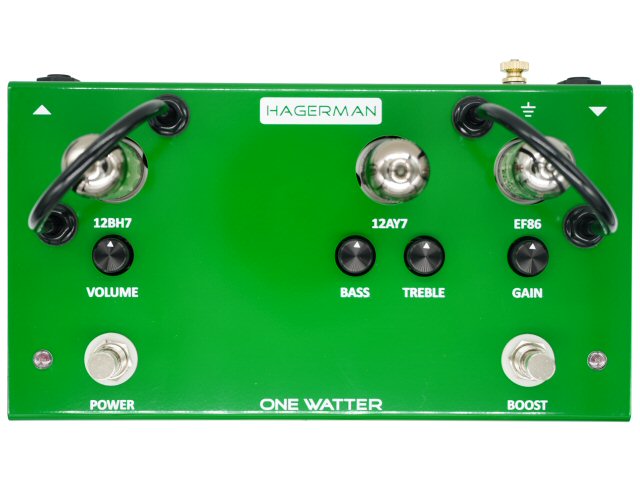

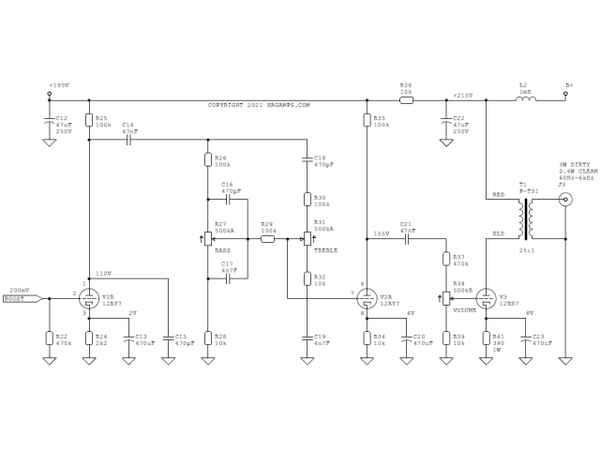

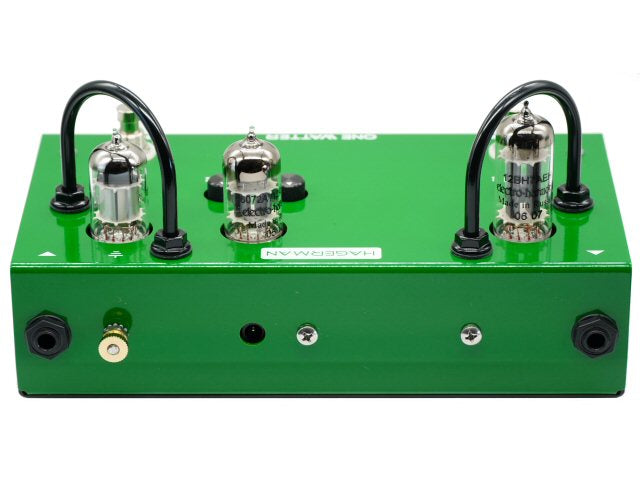

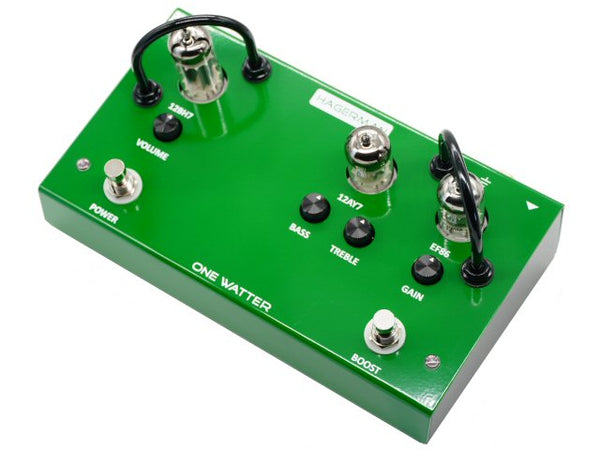

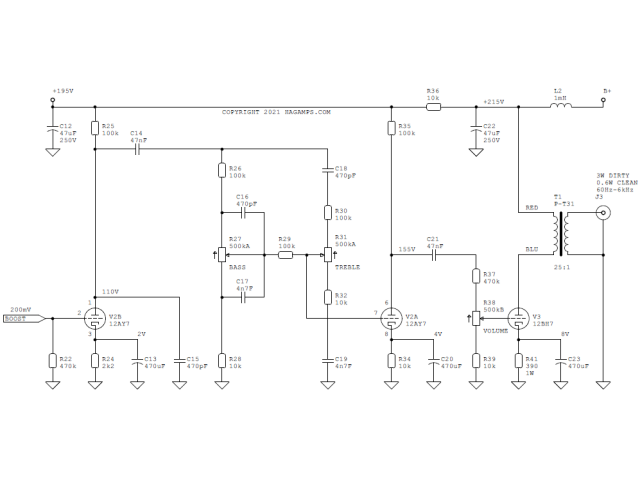

ONE WATTER is an all-new amplifier design targeting practice-at-home conditions. With one watt of output power, this amplifier provides fabulous tube tone and overdrive at reasonable listening levels. The clean channel employs a 12AY7 tube for gain driving a 12BH7 (paralleled sections) running single-ended into an oversized output transformer. The boost channel operates an EF86 pentode for extra gain and chime. Works great with pedals! Don't burn up your stage amp at home.

Drives any 8 or 16 ohm speaker cabinet. Play clean, play dirty.

Specifications

  • 1W clean @8Ω (3W dirty)
  • 1 x EF86, 1 x 12AY7 and 1 x 12BH7 tube complement
  • Gain (boost), Bass, Treble, and Volume
  • 60Hz to 6kHz bandwidth
  • 5Ω output impedance
  • +28dB gain boost (150 to 3kHz)
  • 9 x 5 x 4.5 inches
  • 15Vdc supply @17W (included)
