Metal - High-Gain Pedal

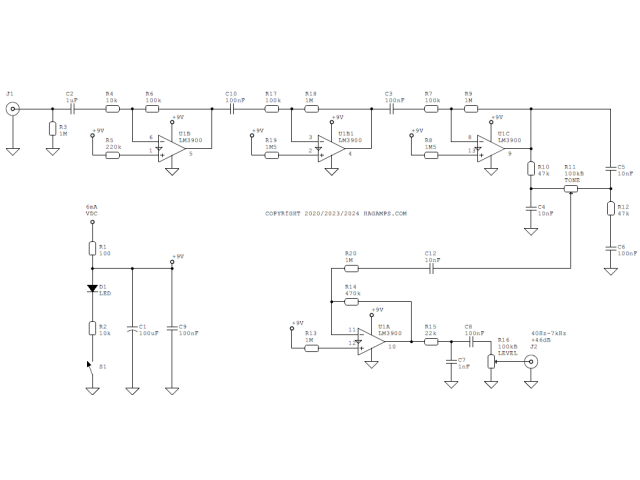

Metal is a high gain distortion / fuzz circuit based on the unusual LM3900 Norton  (current input) amplifier chip. This novel design will get you thrashing with heavy metal tones and sustain, all while maintaining a low noise floor. Works great on bass too!

Specifications

• True bypass
• 40dB maximum gain
• 40Hz to 5kHz
• 100k ohm input impedance
• 9V to 15V @ 6mA power

Downloads

• User Manual

Videos

Soundclips

Testimonials

• "I received my pedal order last week and thought i'd say thanks. I'm really happy with it. Great voice, plays well other pedals and its quiet. The base plate with the mounting tabs is awesome. For the last few years I have been making abs plates for my pedals that are damn near identical to this so its a nice bonus."
