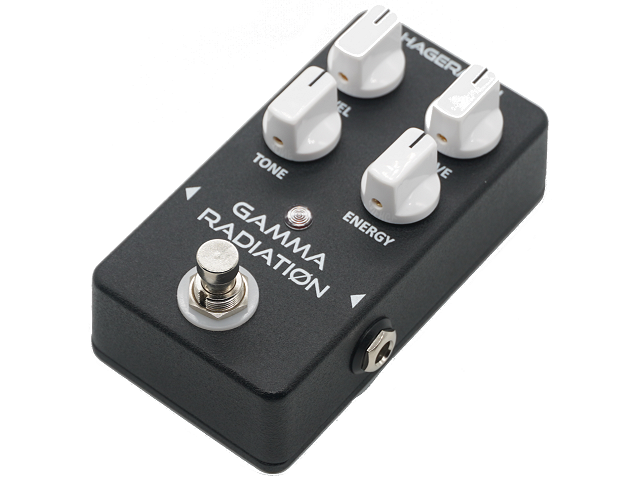

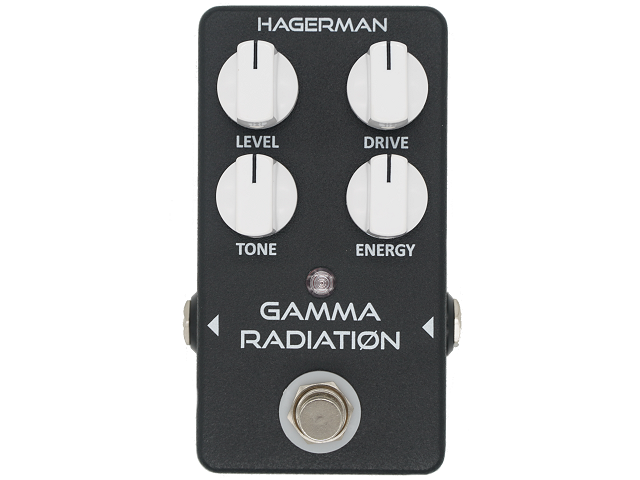

Gamma Radiatiøn - Transistor Distortion Pedal
Gamma Radiatiøn - Transistor Distortion Pedal
Gamma Radiatiøn - Transistor Distortion Pedal

Gamma Radiatiøn - Transistor Distortion Pedal

$119.00 $0.00

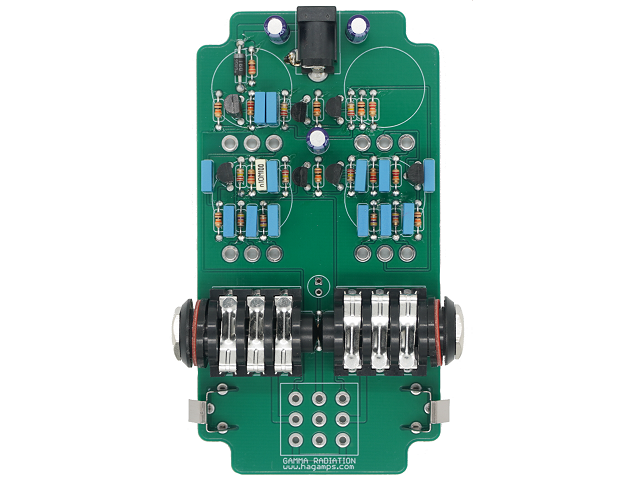

Based on my "gamma" patent from 1995, the GAMMA RADIATIØN circuit runs two clipping stages in series with an ENERGY (tone) control in between, for more control of voicing. Seven transistors do all amplification and buffering, no opamps. Turn down the DRIVE control and the volume on your guitar for spooky clean, warm tones. Crank it for radiant joy. Plenty of output level for overdriving your amp as well. The extreme flexibility of this pedal allows it to mimic a wide range of flavors, from Blues Breaker to Rat to Screamer and many others.

Specifications

  • True bypass
  • 43dB maximum gain
  • 100k input impedance
  • 55Hz to 7kHz bandwidth
  • 9V to 15V @ 4mA power

Downloads

Videos

Testimonials

  • "Gotta say, I don't know what I expected from the Gamma Radiation, but it absolutely lives up to its name; that dirty, surprisingly beefy crackle really feels like the distortion equivalent of a geiger counter. Tiny pedal with a big sound and a lot of personality."
  • "That has balls. Even down all the way it's a rock machine. Very throaty and meaty, if that makes sense. Tone all the way up and Energy all the way down really sound modern metal."
